Custom Splice Tape

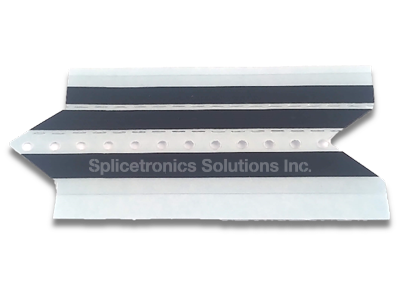

Black Double Splice Tape

Description

DPL tapes are designed specifically for Panasonic machines with an intelligent feeder. The black strip will allow the sensor to detect the splice. Each size has placement holes to use with the FJ110 and MJ110 alignment jigs.

Products

Part Category Qty/Unit
DPL08 Black Double Splice Tape 8mm 500 pcs/box
DPL12 Black Double Splice Tape 12mm 500 pcs/box
DPL16 Black Double Splice Tape 16mm 500 pcs/box
DPL24 Black Double Splice Tape 24mm 250 pcs/box

Black Double Splice Tape

Description

A similar design for Panasonic machines with an intelligent feeder, DSP tapes can be used with or without the splice tool and clip. Each size is clearly marked and has a placement guide to align cut carrier tapes.

Products

Part Category Qty/Unit
DSP08 Black Double Splice Tape 8mm 500 pcs/box
DSP12 Black Double Splice Tape 12mm 500 pcs/box
DSP16 Black Double Splice Tape 16mm 500 pcs/box
DSP24 Black Double Splice Tape 24mm 250 pcs/box

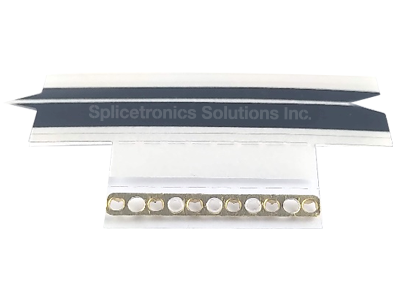

Black Splice Tape & Clip

Description

CSP tape is a labor-saving innovative design with strips of black tape connected with a splice clip in one piece. Also designed for Panasonic machines with an intelligent feeder. Compatible with the ST110 and ST310 splice tools.

Products

Part Category Qty/Unit
CSP08 Black Splice Tape and Clip 8mm 500 pcs/box
CSP12 Black Splice Tape and Clip 12mm 500 pcs/box
CSP16 Black Splice Tape and Clip 16mm 500 pcs/box
CSP24 Black Splice Tape and Clip 24mm 250 pcs/box

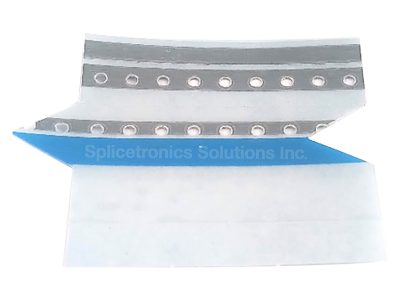

Silver Double Splice Tape

Description

DSBL tapes are designed specifically for Fuji machines with an intelligent feeder. The silver strip will allow the sensor to detect the splice. Each size has placement holes to use with the FJ110 and MJ110 alignment jigs.

Products

Part Category Qty/Unit
DSBL08 Silver/Blue Splice Tape 8mm 500 pcs/box
DSBL12 Silver/Blue Splice Tape 12mm 500 pcs/box
DSBL16 Silver/Blue Splice Tape 16mm 500 pcs/box
DSBL24 Silver/Blue Splice Tape 24mm 250 pcs/box

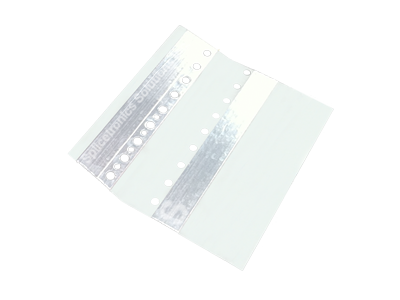

Silver Double Splice Tape

Description

A similar design for Fuji machines with an intelligent feeder. Each size has placement holes that can be used with the alignment jigs.

Products

Part Category Qty/Unit
DSSL08 Silver Splice Tape 8mm 500 pcs/box
DSSL12 Silver Splice Tape 12mm 500 pcs/box
DSSL16 Silver Splice Tape 16mm 500 pcs/box
DSSL24 Silver Splice Tape 24mm 250 pcs/box

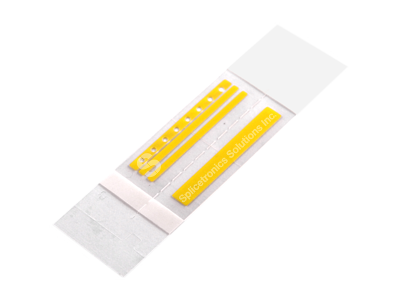

Double Splice Tape

Description

DSU tapes are used to join 8mm carrier tapes without using the splice tool or clip. This design is available in 4pc (DSU308) and 3pc (DSU208). Each model has placement holes that can be used with the alignment jigs.

Products

Part Category Qty/Unit
DSU308 Double Splice Tape 8mm 500 pcs/box
DSU208 Double Splice Tape 8mm 500 pcs/box
