Splicetronics Solutions Inc.
Double Splice Tape

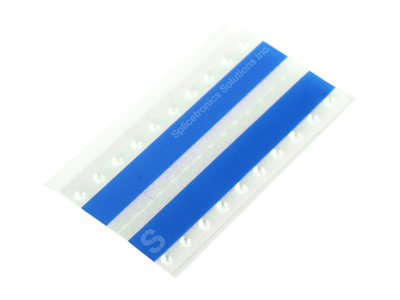

Blue Double Splice Tape
Description
Double Splice Tapes are used to join SMT component carrier tapes. Supplied in pre-cut strips of PET tape, use with or without the splice tool and clip. Each piece has 10 indentations on either side to help align with the carrier tape sprocket drive holes.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| DSB08 | Blue Double Splice Tape 8mm | 500 pcs/box |
| DSB12 | Blue Double Splice Tape 12mm | 500 pcs/box |
| DSB16 | Blue Double Splice Tape 16mm | 500 pcs/box |
| DSB24 | Blue Double Splice Tape 24mm | 500 pcs/box |

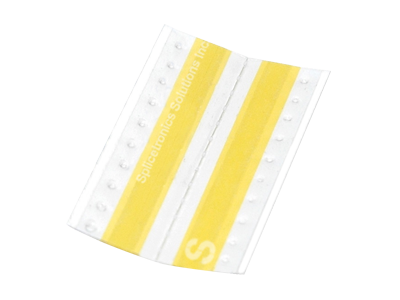

Yellow Double Splice Tape
Description
The standard length of the double splice tape is 40mm per strip for 8mm-16mm carrier tapes and 45mm for 24mm. The width varies with the reel size. View the product brief PDF for actual width dimensions.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| DS108 | Yellow Double Splice Tape 8mm | 500 pcs/box |
| DS112 | Yellow Double Splice Tape 12mm | 500 pcs/box |
| DS116 | Yellow Double Splice Tape 16mm | 500 pcs/box |
| DS124 | Yellow Double Splice Tape 24mm | 500 pcs/box |

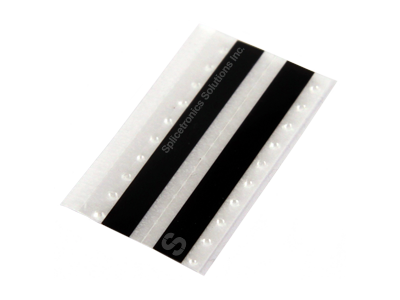

Black Double Splice Tape
Description
The blue and yellow colors are of preference. The black color is ESD safe. If you don't see the type, color, or size of tape you are looking for, please contact us.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| DSC08 | Black Double Splice Tape 8mm | 500 pcs/box |
| DSC12 | Black Double Splice Tape 12mm | 500 pcs/box |
| DSC16 | Black Double Splice Tape 16mm | 500 pcs/box |
| DSC24 | Black Double Splice Tape 24mm | 500 pcs/box |

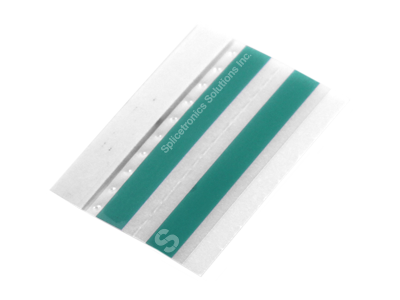

Green Double Splice Tape
Description
DSG double splice tape has a light green transparent PET material. This design has a placement guide to easily align cut carrier tapes. All sizes are supplied 500pcs/box.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| DSG08 | Green Double Splice Tape 8mm | 500 pcs/box |
| DSG12 | Green Double Splice Tape 12mm | 500 pcs/box |
| DSG16 | Green Double Splice Tape 16mm | 500 pcs/box |
| DSG24 | Green Double Splice Tape 24mm | 500 pcs/box |
