Splicetronics Solutions Inc.
Single Splice Tape
Blue Single Splice Tape
Description
Single Splice Tapes are used to join SMT component carrier tapes. Pre-cut strips of PET tape are supplied 4 strips per sheet for 8mm-16mm sizes and 2 strips per sheet for 24mm. 32mm and 44mm sizes are available upon request.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| SSB08 | Blue Single Splice Tape 8mm | 4000 pcs/box |
| SSB12 | Blue Single Splice Tape 12mm | 4000 pcs/box |
| SSB16 | Blue Single Splice Tape 16mm | 4000 pcs/box |
| SSB24 | Blue Single Splice Tape 24mm | 2000 pcs/box |

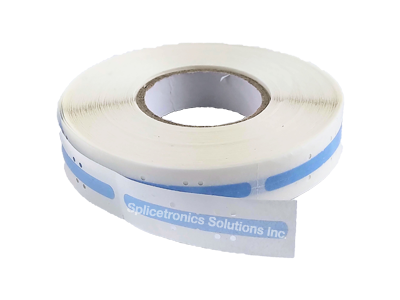

Blue Single Splice Tape Roll
Description
SRB tape differs as the pre-cut strips are supplied on a roll and in smaller quantities per unit. The standard length of the single splice tape is 45mm per strip. The width varies with the reel size. View the product brief PDF for actual width dimensions.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| SRB08 | Blue Single Splice Tape 8mm | 800 pcs/box |
| SRB12 | Blue Single Splice Tape 12mm | 1000 pcs/box |
| SRB16 | Blue Single Splice Tape 16mm | 1000 pcs/box |
| SRB24 | Blue Single Splice Tape 24mm | 1000 pcs/box |

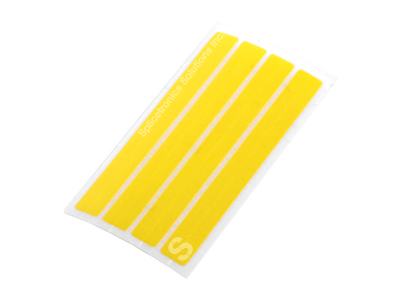

Yellow Single Splice Tape
Description
Single Splice Tapes are recommended for use with the splice tool and clip. When used together, they create a stronger connection, especially on larger carrier tapes.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| SS208 | Yellow Single Splice Tape 8mm | 4000 pcs/box |
| SS112 | Yellow Single Splice Tape 12mm | 4000 pcs/box |
| SS116 | Yellow Single Splice Tape 16mm | 4000 pcs/box |
| SS124 | Yellow Single Splice Tape 24mm | 2000 pcs/box |

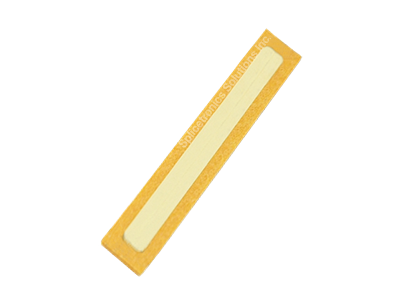

SMT Single Splice Tape
Description
SS108-24 tapes are supplied in convenient pre-cut individual strips and in smaller quantities per unit. Custom widths are available upon request.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| SS108 | SMT Single Splice Tape 8mm | 1000 pcs/box |
| SS312 | SMT Single Splice Tape 12mm | 1000 pcs/box |
| SS316 | SMT Single Splice Tape 16mm | 1000 pcs/box |
| SS324 | SMT Single Splice Tape 16mm | 1000 pcs/box |

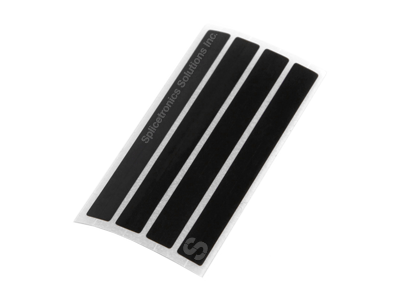

Black Single Splice Tape
Description
The blue and yellow colors are of preference. The black color is ESD safe. If you don't see the type, color, or size of tape you are looking for, please contact us.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| SSC08 | Black Single Splice Tape 8mm | 4000 pcs/box |
| SSC12 | Black Single Splice Tape 12mm | 4000 pcs/box |
| SSC16 | Black Single Splice Tape 16mm | 4000 pcs/box |
| SSC24 | Black Single Splice Tape 24mm | 2000 pcs/box |

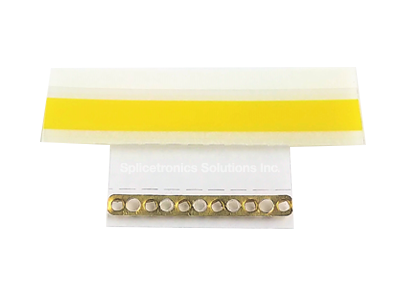

Single Splice Tape & Clip
Description
CS tape is a labor-saving innovative design with a single strip of tape connected with a splice clip in one piece. Compatible with the ST110 and ST310 splice tools. Available in other colors upon request.
Products
| Part | Category | Qty/Unit |
|---|---|---|
| CS108 | Single Splice Tape and Clip 8mm | 500 pcs/box |
| CS112 | Single Splice Tape and Clip 12mm | 500 pcs/box |
| CS116 | Single Splice Tape and Clip 16mm | 500 pcs/box |
| CS124 | Single Splice Tape and Clip 24mm | 250 pcs/box |
